🔸 Key Features:
-
Rack-Mounted Design
-
Space-saving format ideal for home energy closets or utility rooms
-
Easy installation and maintenance
-
-
High Energy Density
-
LiFePO₄ chemistry ensures compact size with maximum storage capacity
-
Available in 5.12kWh and 10.24kWh models
-
-
Modular & Scalable Architecture
-
Flexible system expansion based on energy needs
-
Easily stack multiple units for increased storage
-
-
Reliable Backup Power
-
Provides seamless power during outages
-
Supports critical household loads
-
-
Advanced Battery Management System (BMS)
-
Built-in BMS monitors voltage, current, and temperature
-
Protection against overcharge, over-discharge, short circuit, and overheating
-
-
Smart Monitoring & Control
-
Optional remote monitoring via mobile app or web interface
-
Real-time insights into system health and performance
-
-
Broad System Compatibility
-
Compatible with major inverter brands and solar energy systems
-
Ideal for hybrid and off-grid applications
-
-
Long Life & Durability
-
Over 6000 charge/discharge cycles expected
-
Retains >80% capacity even after years of use
-
-
Certified Quality Assurance
-
Compliant with IEC62619, CE, RoHS, and UN38.3 standards
-
Safe and export-ready
-
-
Eco-Friendly & Cost-Efficient
-
Reduces reliance on the grid and lowers electricity bills
-
Supports sustainable energy consumption patterns
-
📊 Technical Specifications:
Model | LFP 51.2V 100Ah | LFP 51.2V 200Ah |
---|---|---|
Nominal Voltage | 51.2V | 51.2V |
Nominal Capacity | 100Ah | 200Ah |
Energy Storage | 5.12kWh | 10.24kWh |
Dimensions (mm) | 480 × 442 × 155 | 600 × 442 × 226 |
Weight (approx.) | 45kg | 85kg |
Installation | Rack-Mounted | Rack-Mounted |
Certifications | IEC62619, CE, RoHS, UN38.3 |

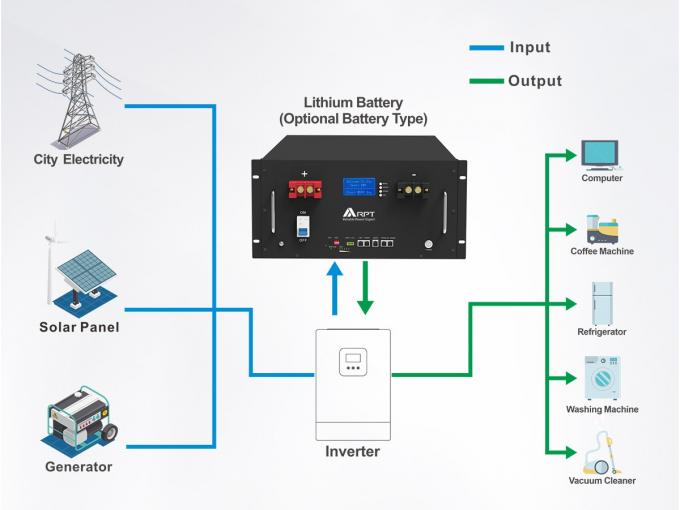

💡 Typical Applications:
-
Residential solar energy storage
-
Backup power during grid outages
-
Peak shaving and load shifting
-
Smart home energy management
-
Integration with hybrid/off-grid systems
